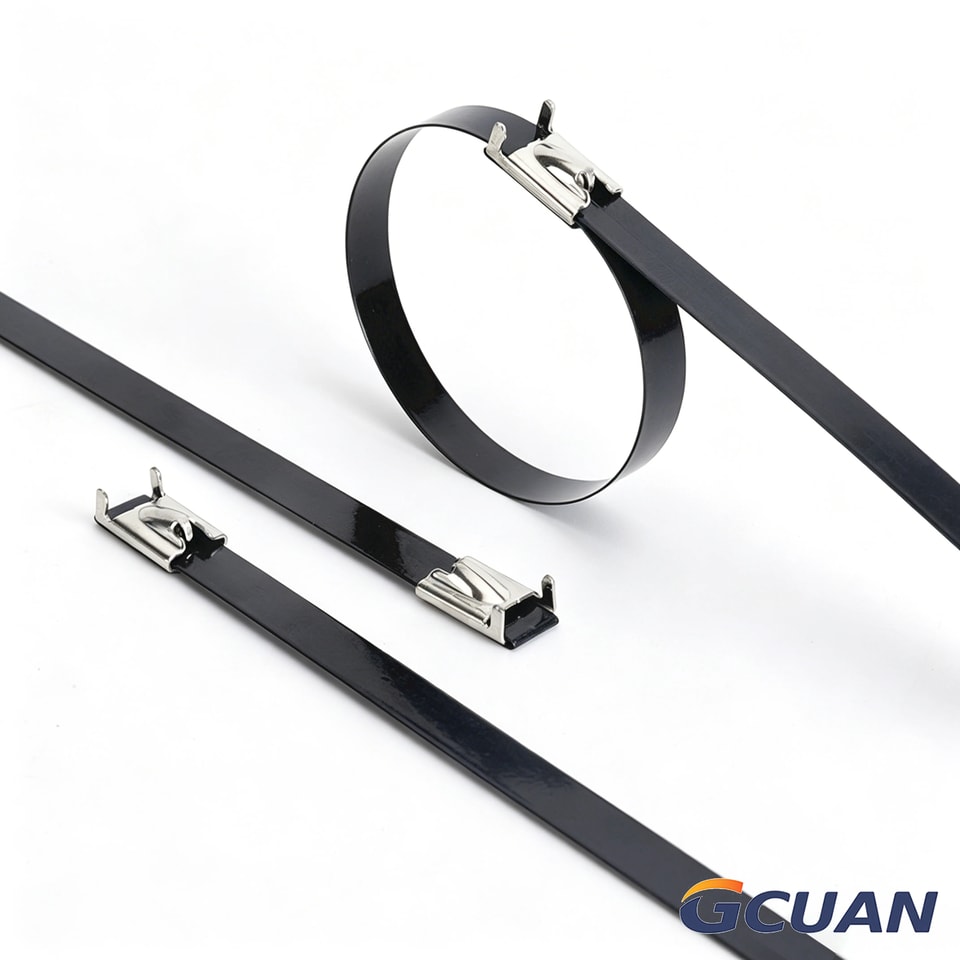

BZL Stainless Steel Cable Ties-L Type Ball-lock Ties

BZL uncoated：
Working Temp: -80° ~ 538°
Product features: L-shape Stronger tensile strength, then nominal ball-lock uncoated ties

BZLP coated：
Working Temp: -80° ~ 150°
Product features: L-shape Stronger tensile strength, then nominal ball-lock uncoated ties, polyester coated band provide additional edge protection, prevent corrosion between dissimilar materials

Technical Information：
Product material: Stainless Steel Grade 201or304, 316
Other Properties: High and low temperature resistance, wear resistance, rust resistance, UV resistance
Coating: POLYESTER/Epoxy
Description: Entirely metallic or coated

Request a Quote

Product Description

Parameter:

Type	Item NO.	Thickness		Width		Length		Min. Tensile strength
Type	Item NO.	(mm)	(inch)	(mm)	(inch)	(mm)	(inch)	(N)	(lbs)
•BZL uncoated •BZLP coated	7.9*200	0.25 0.3	0.01 0.012	7.9	0.31	200	7.9	2220	500
	7.9*250					250	9.8
	7.9*300					300	11.8
	7.9*350					350	13.8
	7.9*400					400	15.7
	7.9*450					450	17.7
	7.9*500					500	19.7
	7.9*550					550	21.7
	7.9*600					600	23.6
	7.9*800					800	31.5
•BZL uncoated •BZLP coated	12*300	0.25 0.3	0.01 0.012	12	0.47	300	11.8	3115	700
	12*350					350	13.8
	12*400					400	15.7
	12*500					500	19.7
	12*700					700	27.6
	12*800					800	31.5
	12*900					900	35.4
	12*1000					1000	39.4
	12*1200					1200	47.2
	12*1500					1500	59.1
