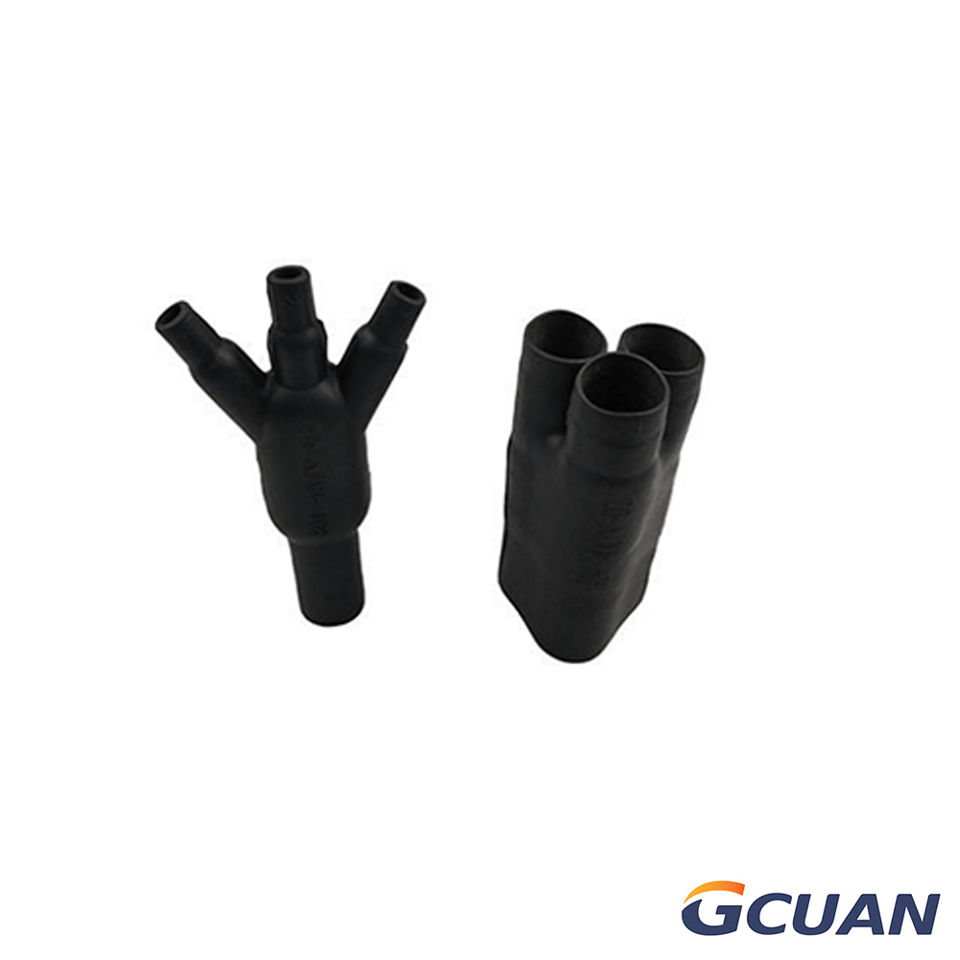

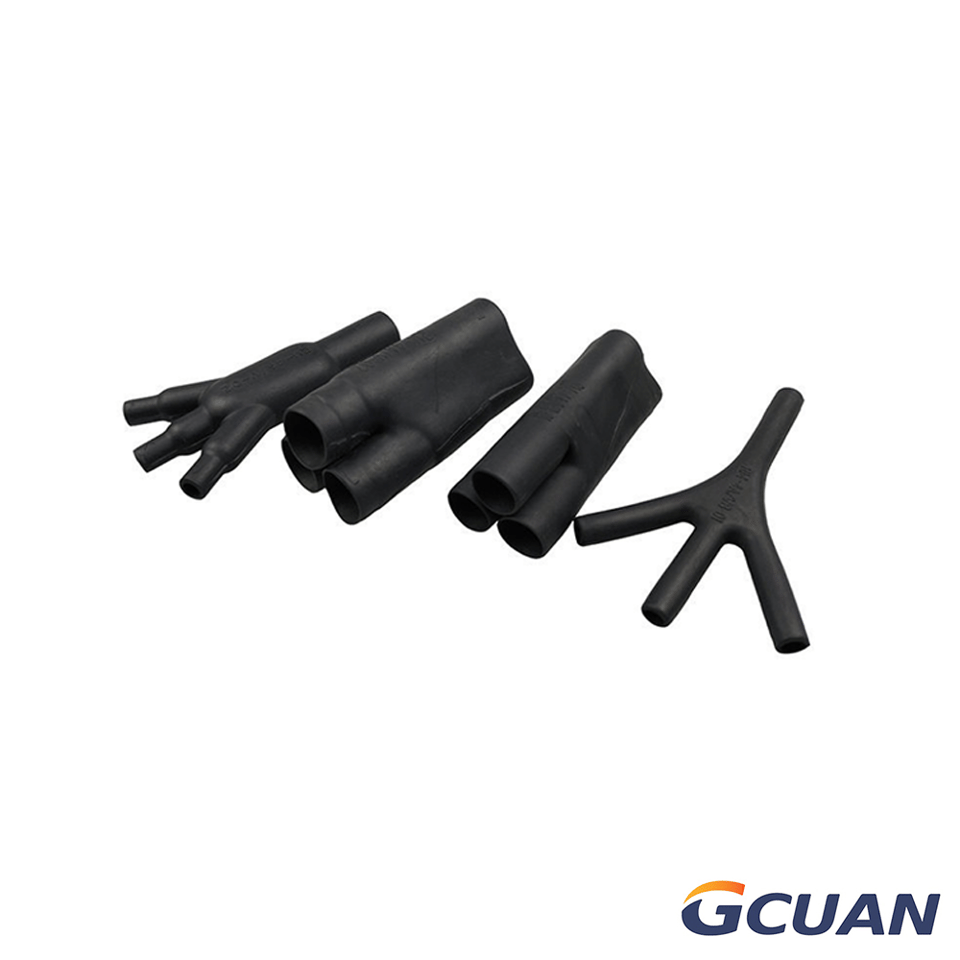

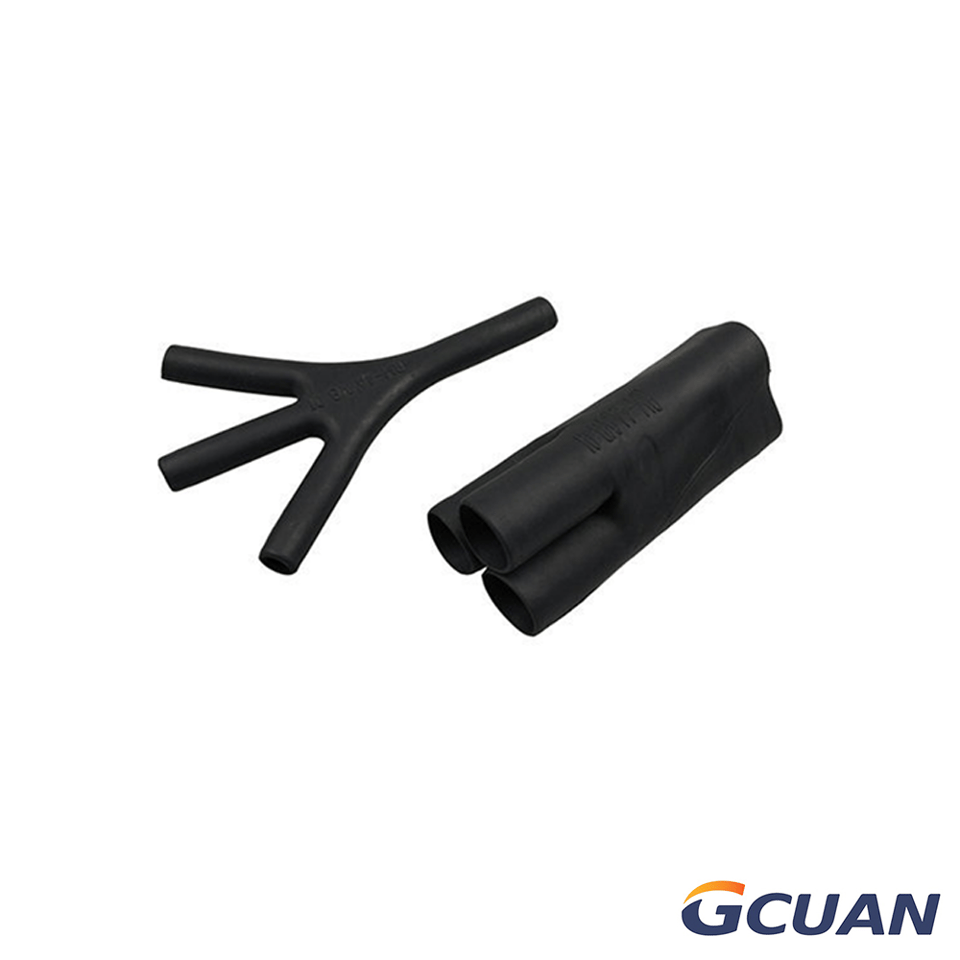

Y-Shaped 3 Ways Heat Shrink Boots
Cable breakout points and transfer points provide stress relief, sealing and mechanical protection for cable assemblies, cable breakout points and transfer points used in harsh environments.
MS-4A/E
NO. | Model | Minimun Expanded as Supplied(mm) | Maximum Recovered After Heating(mm) | ||||
Hmin | J, K&Lmin | Hmax | J, K&Lmax | W±20% | P±10% | ||
1 | MS-4A/E-01 | 19.8 | 13.2 | 6.6 | 6.6 | 1.0 | 85.9 |
2 | MS-4A/E-02 | 34.3 | 20.6 | 11.4 | 11.4 | 1.3 | 135.6 |
3 | MS-4A/E-03 | 60.2 | 36.1 | 20.1 | 20.1 | 1.5 | 207.3 |
4 | MS-4A/E-04 | 99.8 | 54.9 | 33.3 | 33.3 | 1.8 | 294.6 |
MS-4B/E
NO. | Model | Minimun Expanded as Supplied(mm) | Maximum Recovered After Heating(mm) | |||||
Hmin | J, K&Lmin | Hmax | J, K&Lmax | HW±20% | JW, KW&LW±20% | P±10% | ||
1 | MS-4B/E-01 | 13.2 | 6.6 | 6.6 | 3.6 | 1.52 | 1.02 | 46.2 |
2 | MS-4B/E-02 | 26.9 | 13.2 | 13.2 | 6.9 | 2.54 | 1.52 | 93.2 |
3 | MS-4B/E-03 | 38.6 | 19.3 | 18.8 | 9.7 | 3.05 | 1.78 | 135.1 |
4 | MS-4B/E-04 | 55.6 | 26.9 | 25.4 | 12.4 | 4.57 | 3.05 | 192.0 |
5 | MS-4B/E-05 | 91.4 | 45.7 | 54.6 | 27.4 | 7.11 | 4.57 | 390.4 |
