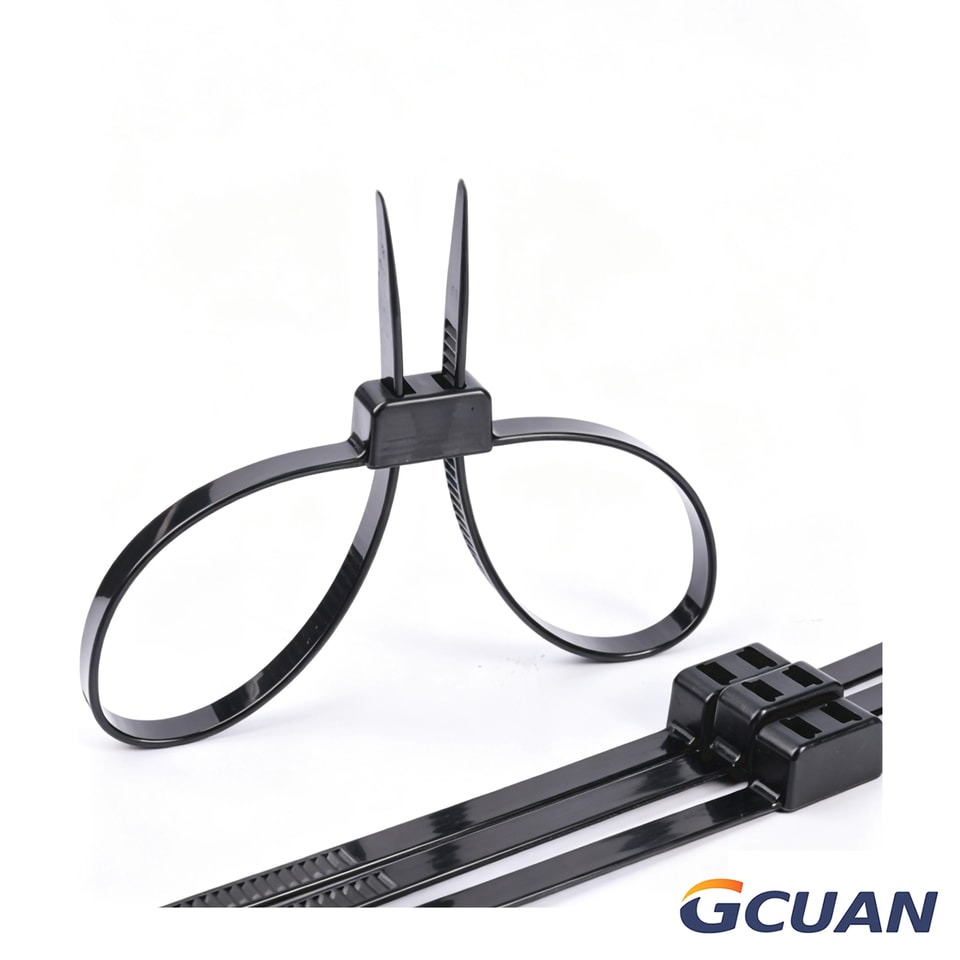

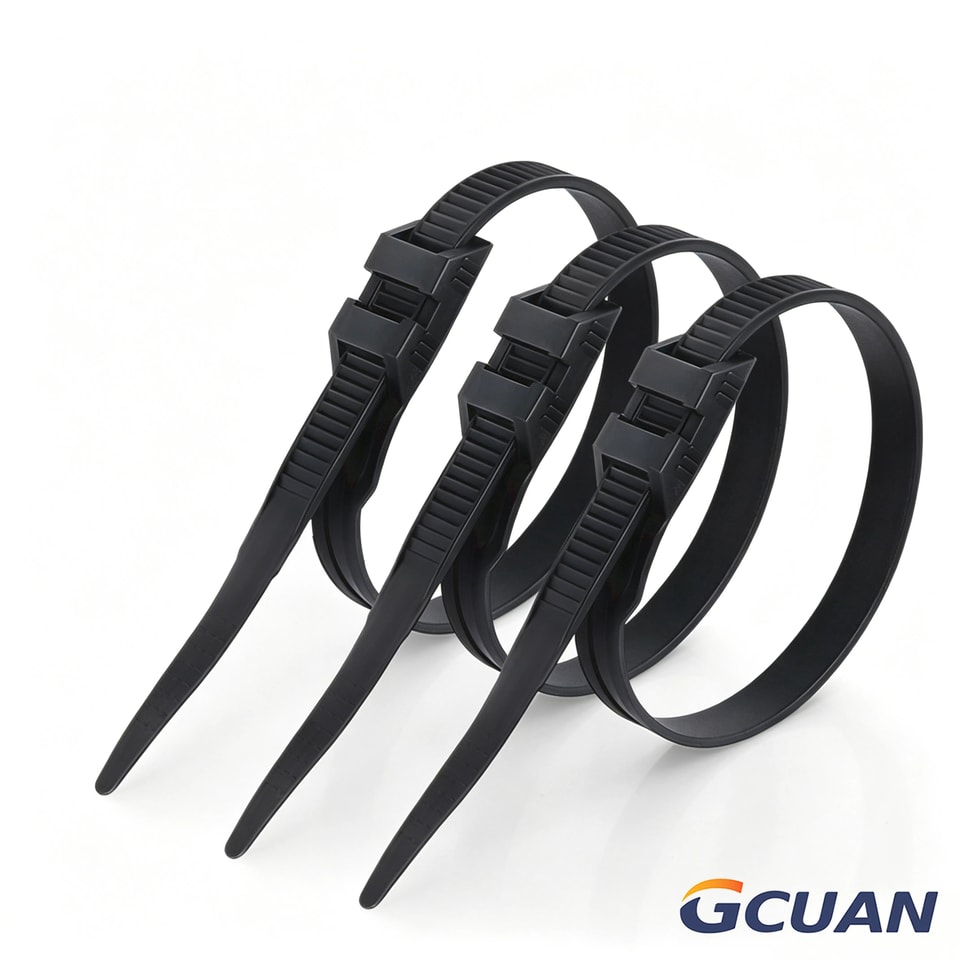

Double Head Cable Ties
Features & Benefits：
The heads of the double-headed strap are designed as two independent structures with opposite teeth. The strap of the same strap can pass through the two heads in turn to form two independent and connected strapping methods, double-headed, integrated design, easy to operate. Double Head Cable Ties available in bulk 1,000 or500 pieces bags or smaller 100 pieces bags.
Characteristic：
|
Item |
Details |
|
Material |
Polyamide 6 |
|
Material Brand |
JHSPA6、HENGYI |
|
Flammability Of Raw Material |
UL 94-V2 |
|
Humidity Absorption |
2,7%-2,8% (23℃ -50% R.H.) |
|
Installation Temperature |
5℃ ~+85℃ |
|
Max Sustainable Temperature For Short Time |
+100℃ |
|
Recommended for indoor use, non-high-temperature, or light-duty environments |
|
Parameter:
|
Item No. |
Width |
Length |
Max. Bundle Dia. |
Min. Tensile Strength |
Package |
Material |
|||
|
(mm/inch) |
(mm/inch) |
(mm) |
(inch) |
(N) |
(kg) |
(lbs) |
|||
|
TSD-200ST |
4.8(0.189) |
200(7.87) |
50 |
1.97 |
222 |
22.6 |
50 |
100 |
PA66 |
|
TSD-250ST |
4.8(0.189) |
250(9.84) |
65 |
2.56 |
222 |
22.6 |
50 |
100 |
PA66 |
|
TSD-300ST |
4.8(0.189) |
300(11.81) |
80 |
3.15 |
222 |
22.6 |
50 |
100 |
PA66 |
|
TSD-350ST |
4.8(0.189) |
350(13.78) |
90 |
3.54 |
222 |
22.6 |
50 |
100 |
PA66 |
|
TSD-370ST |
4.8(0.189) |
370(14.57) |
98 |
3.86 |
222 |
22.6 |
50 |
100 |
PA66 |
